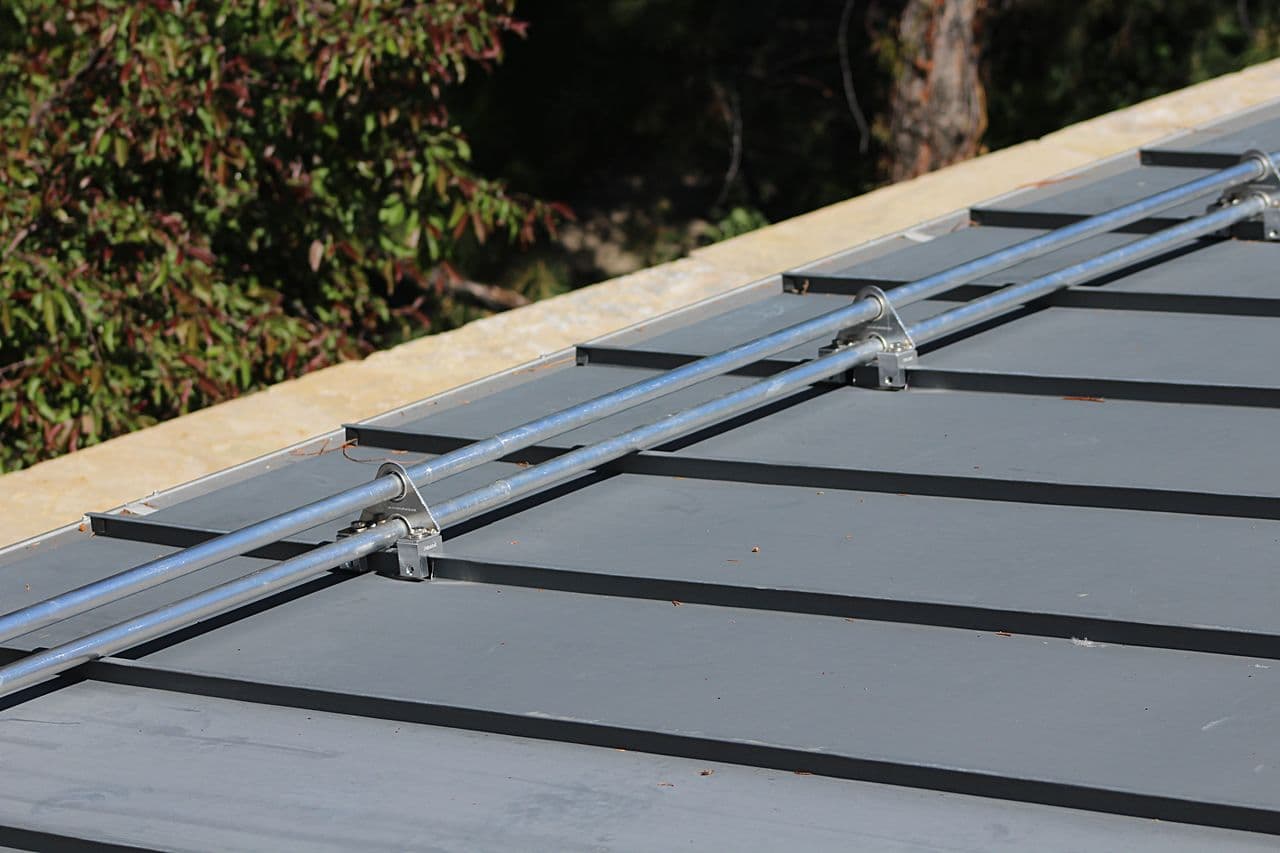

2-Pipe Fence-Style Snow Guard System
Aluminum 2-pipe snow fence bracket with two attached S-5!® NH 1.5 Mini clamps for standing seam metal panels.
Aluminum 2-pipe snow fence bracket with two attached S-5!® NH 1.5 Mini clamps for standing seam metal panel roofs. Effective for snow retention in areas with low to moderate snow loads.
The S-5-NH 1.5 ("NH" stands for Nail strip Hinge) Mini clamp is designed specifically for 1-1/2" tall nail strip standing seam metal roof profiles with a wider horizontal dimension (>0.475" and up to 0.80").
The innovative insert is a "hinge" design and features a toe to engage the female portion of the panel. The aluminum insert forms to the shape of the seam, preventing damage at the point of attachment, while offering optimal holding strength. The aluminum hinge insert is staked at one end to facilitate installation and is reversible to allow for proper fit on both wide and medium-width profiles.
The S-5!® standing-seam clamps are designed to affix directly to the vertical seams of the metal panels without penetrating the seam by tightening the included stainless steel setscrews.

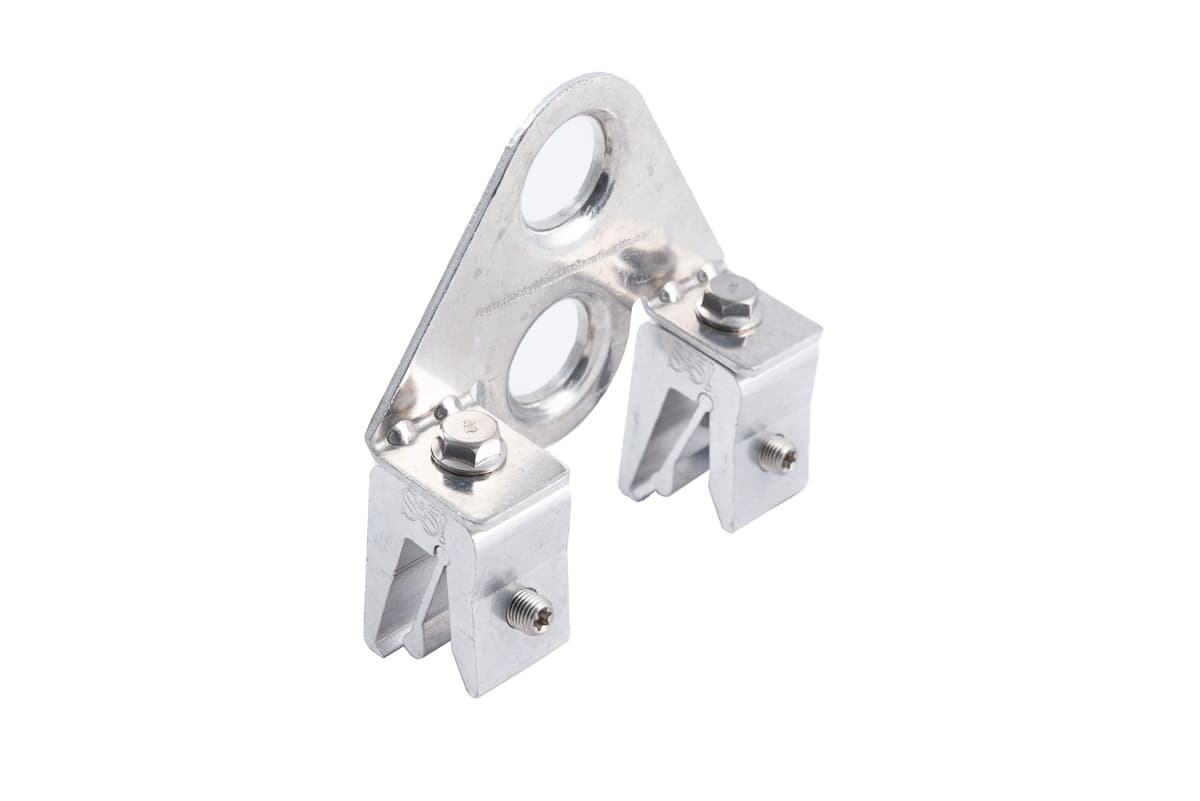

Fence-Style Snow Guard Bracket
Aluminum 2-pipe snow fence bracket with two attached S-5!® NH 1.5 Mini clamps for standing seam metal panels.
Fence-Style Accessories
Aluminum 1" OD tubing fits in various brackets in Fence-Style snow retention systems to retain heavy snow loads from sliding.
Request a FREE layout and design quote from our snow retention experts.
Request a Free Quote
Fence-Style Accessories
Aluminum Tubing End Collars fit at ends of Fence-Style snow retention system tubing to keep tubing in place.
Fence-Style Accessories
Steel End Caps for sealing the end of 1" OD aluminum and steel tubing on Fence-Style snow retention systems.
Fence-Style Accessories
Ice Flags are optionally installed on Fence-Style systems to help impede the movement of snow and ice under the tubing cross-members on standing-seam roofs.
