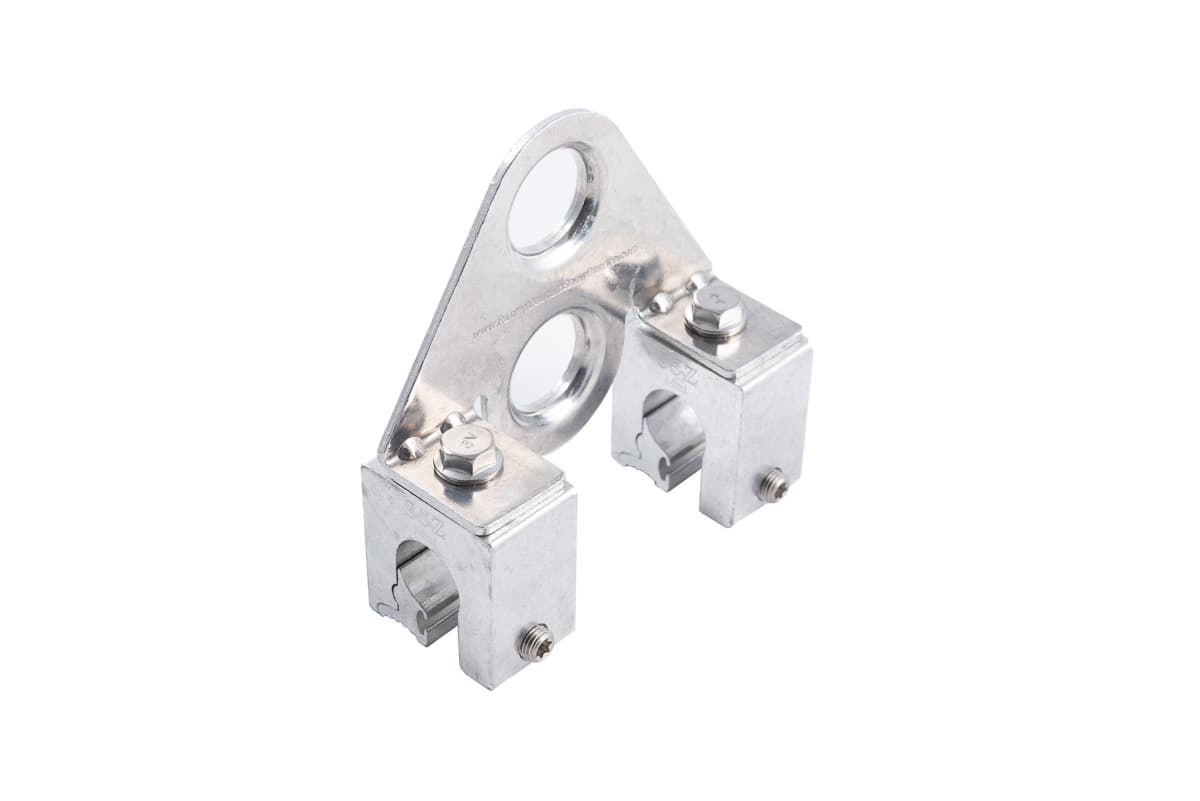

2-Pipe Fence-Style Snow Guard System
Aluminum 2-pipe snow fence bracket with two attached S-5!® Z Mini clamps for standing seam metal panels.
Aluminum 2-pipe snow fence bracket with two attached S-5!® Z Mini clamps for standing seam metal panel roofs. Effective for snow retention in areas with low to moderate snow loads.
The S-5-Z Mini Clamp is specially developed to fit profiles having a "bulb" seam configuration and seam diameter of 7/8" (22 mm) or less. It's two-piece design allows it to be easily installed anywhere along the length of the rib.
The S-5!® standing-seam clamps are designed to affix directly to the vertical seams of the metal panels without penetrating the seam by tightening the included stainless steel set-screws.
2-Pipe Fence-Style Snow Guard System
Aluminum 2-pipe snow fence bracket with two attached S-5!® Z Mini clamps for standing seam metal panels.
Fence-Style Accessories
Aluminum 1" OD tubing fits in various brackets in Fence-Style snow retention systems to retain heavy snow loads from sliding.
Request a FREE layout and design quote from our snow retention experts.
Request a Free Quote
Fence-Style Accessories
Aluminum Tubing End Collars fit at ends of Fence-Style snow retention system tubing to keep tubing in place.
Fence-Style Accessories
Steel End Caps for sealing the end of 1" OD aluminum and steel tubing on Fence-Style snow retention systems.
Fence-Style Accessories
Ice Flags are optionally installed on Fence-Style systems to help impede the movement of snow and ice under the tubing cross-members on standing-seam roofs.
